Ranger Telescopic Gate System - Gate Builder
-
Configure
Step 1 of 3-
Enter below the main measurements for selection and calculation of the Ranger Telescoping Sliding Gate most suited to your needs. Note that the length (A) requested corresponds to the width of the gate
Gate Measurements
How wide is the opening you need the telescoping gate to cover?FeetInchesSpecify opening in Feet and InchesError message Error messageHow many telescoping gate leafs do you need?
Max opening: 2 leaf = 26 Ft. & 3 leaf = 40 Ft.2 Leaf3 LeafSelect system by number of leafsError messageMax. weight of each leaf is 0 lbsN/AThe gate leaf overlap is needed to keep the gate system stable when the gate is closed and when cycling. You can increase the overlap, but doing so makes the gate panels longer and heavier. Increasing the overlap is useful if your gate panels are already built and you are matching them to fit an opening they weren't specifically designed for.InchesMinimum 14"Accept the standard overlap of 14" or specify a custom overlap in inches.Error messageHow tall will the gate be?FeetInchesSpecify height in Feet and InchesError message Error messageSelect the option that best matches your gate. We use this to estimate the weight to help keep your gate weight within spec.What material will your gate be made out of?Error messageThe max gate weight spec is important because if the weight is too heavy the drive gears will bind in the rack rail that pushes the next panel. This will cause the gates to stop or overload the gate operator. Max panel weight: 2 leaf = 880 lbs. & 3 leaf = 440 lbs.LbsAn estimate is okHow much will your gate weight?Note: The Maximum weight of each leaf for a 0 leaf Ranger system is 0 lbsError messageSelected gate weight range 0 to 0 lbsN/AProject
Project name and descriptionEnter Project nameError messageEnter Project notesError messageGate View
Calculations
-
-
Products and Accessories
Step 2 of 3Products
8. Ranger Kit and confirm quantity and price
-
Ranger Kit, 2 Leaf, Fits 2" x 4" frame, 880 lb/leaf
Price586.50Quantity1Subtotal586.50 -
RG2-120.50
- Fits 2" x 4" frame
- 880 pounds per leaf maximum
- 26ft maximum opening
- 1 each, Primary Drive Wheel, 5"Dia.
- 1 each, Free Wheel for primary leaf, 5"Dia.
- 2 each, Standard Wheels for secondary leaf, 5-3/8"Dia.
These drive wheels along with the rack rail attached to the gate panels and the drive track bolted to the ground provide the power transmission from leaf to leaf.
-
Ranger Kit, 3 Leaf, Fits 2" x 4" frame, 440 lb/leaf
Price1058.70Quantity1Subtotal1058.70 -
RG3-120.50
- Fits 2" x 4" frame
- 440 pounds per leaf maximum
- 40ft maximum opening
- 1 each, Primary Drive Wheel, 5"Dia.
- 1 each, Secondary Drive Wheel, 5"Dia.
- 2 each, Free Wheel for primary and secondary leafs, 5"Dia.
- 2 each, Free Wheel for primary and secondary leafs, 5"Dia.
- 2 each, Standard Wheel for third leaf, 5-3/8"Dia.
These drive wheels along with the rack rail attached to the gate panels and the drive track bolted to the ground provide the power transmission from leaf to leaf.
9. Geared Ground Track Calculated for Gate
-
Track, Geared for Ranger System, 6'-6"Long, Galvanized
Geared Ground Track is Required and is used for the first two gates on a 3 leaf system and on the primary leaf on a 2 leaf system. It allows one gate panel to transmit power to the next gate leaf.Price183.10Quantity1Subtotal183.10 -
RG-30P
10. Smooth Ground Track Calculated for Gate
-
Track, Round Profile, Galvanized, 19'8" Long
Smooth Half Round Track is used for the last gate leaf onlyPrice132.10Quantity1Subtotal132.10 -
289G-19.68FT
-
Track, Round Profile, Galvanized, 9'10" Long
Smooth Half Round Track is used for the last gate leaf onlyPrice86.00Quantity1Subtotal86.00 -
289G-9.84FT
11. Number of Alignment Pins for Smooth Track Connections
-
Connection Pin for Item 289 (round profile track)
The alignment pin is used at the track splices to keep the smooth, round track ends aligned so the gate rolls smoothly over each splice.Price3.20Quantity1Subtotal3.20 -
291
12. Track Installation & Allignment Tools
-
Track Installation Guide for Ranger System, 2/set
Price345.20Quantity1Subtotal345.20 -
RG-10P
Templates are purchased once and can be reused for subsequent installations.

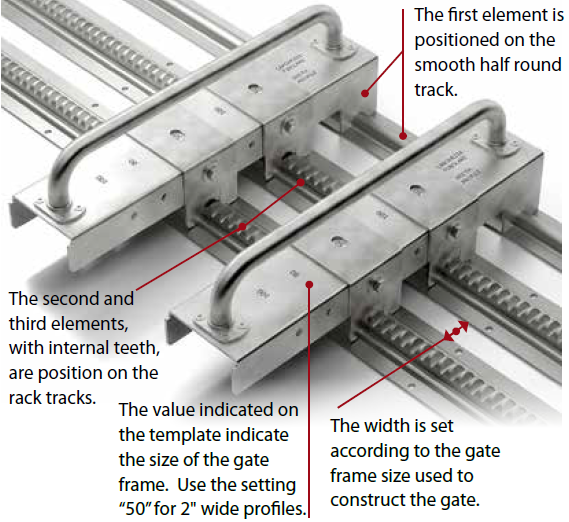

These alignment guide tools ensure an easy and precise installation of the rack tracks that make up the 2 and 3 leaf telescoping systems. The smooth half round track (#289) is installed first, and is used as the reference for the proper parallel placement and alignment of the rack tracks.
The two alignment guide tools are used to maintain the correct spacing between the tracks, according to the gate frame width value selected on the tools.
NOTE: Select 50 for 2" wide gate frames
These guides also ensure that the rack teeth are aligned and in sync when connecting additional rack track sections together. When joining two pieces of rack track, the precise position for the teeth can be achieved using the toothed element of the template guide, positioning it directly on the joint where the two pieces of track meet.
-
Wheel Cutout Template Kit, 2/Set for Ranger System
Price46.70Quantity1Subtotal46.70 -
RG-20
The template kit for wheel installation greatly simplifies marking the cut-out in the bottom tube for the primary and/or secondary drive wheel.
The steps for installing the drive wheels in the frame:
13. Gear Rack Rail for Secondary Leaf(s) Needed for Gate
-
Ranger Gear Rack, Galvanized Steel 1-1/4" (30mm) x 1/2" (12mm), 3'-3" Long
Gear Rack Rail is required for Second Leaf of a 2 leaf system and for the Second and Third leaves of a 3 leaf system. It transmits the drive power into the secondary leaf from the ground track of…Price34.20Quantity1Subtotal34.20 -
262
14. Select Rack Rail Connectors: Weld-on or Screw-On
-
Gear Rack Connector, Weld On, Galvanized
For steel gates we recommend the Weld-on drive rack connectors. But you can also use the threaded bolt on connectors if you prefer. You will need 3 connectors per rack rail. You can also change this option in your shopping cart later if you change your plans.Price1.90Quantity1Subtotal1.90 -
264
-
Gear Rack Connector, Bolt On, Galvanized
For aluminum gates we recommend the threaded bolt-on connectors. We do not have an aluminum weld-on option. You will need 3 connectors per rack rail. You can also change this option in your shopping cart later if you change your plans.Price3.70Quantity1Subtotal3.70 -
266
15. Upper Guide Assembly for 1st Leaf
-
Adjustable Guide Plate for up to 3-1/8", 4 Wheel w/covers, Galvanized
Recommended guide for first panel for all gates. If your gate tops are arched, scalloped, or have an obstruction at the top, call us for other options for guiding the first panel.Price85.90Quantity1Subtotal85.90 -
256-220
16. Upper Guide Track for Secondary Leaf(s)
-
Guide Rail, 1-1/4" I.D. U-Channel, Galvanized, 19'8" Long, for Side Mount
Price87.60Quantity1Subtotal87.60 -
RG-387-19.68FT
-
Guide Rail, 1-1/4" I.D. U-Channel, Galvanized, 9'10" Long, for Side Mount
Upper Guide Track Required for Second Leaf (& Third Leaf on 3 Leaf system). Galvanized Steel is typically used with Steel, Chain Link, or Wood Gates. Aluminum guide track is typically used with Aluminum, PVC / Vinyl Gates, or aluminum framed chain link gates.Price61.50Quantity1Subtotal61.50 -
RG-387-9.84FT
-
Guide Rail, 1-1/4" I.D. U-Channel, Aluminum, 20FT, for Side Mount
Price89.20Quantity1Subtotal89.20 -
CG-237-20FT
-
Guide Rail, 1-1/4" I.D. U-Channel, Aluminum, 10FT, for Side Mount
Upper Guide Track Required for Second Leaf (& Third Leaf on 3 Leaf system). Galvanized Steel is typically used with Steel, Chain Link, or Wood Gates. Aluminum guide track is typically used with Aluminum, PVC / Vinyl Gates, or aluminum framed chain link gates.Price44.60Quantity1Subtotal44.60 -
CG-237-10FT
17. Select Required Upper Guide Assembly(s) for Secondary Leaf(s) | Choose one RG-254 or RG-252 or None
-
NONE
-
Guide Roller Assembly, 4 Rollers 1-1/4" dia. x 12" Long
The 4 roller guide plate is recommended to add horizontal stability to the secondary panels while opening and closing.Price44.40Quantity1Subtotal44.40 -
RG-254
-
Guide Roller Assembly, 2 Rollers 1-1/4" dia. x 8-1/4" Long
The 2 roller guide plate is an economical alternate to the recommended 4 roller guide to add horizontal stability to the secondary panels while opening and closing. It is not suggested for high wind applications or privacy gates.Price29.00Quantity1Subtotal29.00 -
RG-252
18. Select Brush Kit(s) for Gear Ground Track
-
Brush Kit for RG-30 Track, 2 per set
Brush Kits are Recommended accessories. The Brushes are mounted to each end of each track driven panel to sweep the Gear Ground Ttrack for debris and reduce the maintenance required to keep the track clear.Price59.30Quantity1Subtotal59.30 -
RG-15
19. Select Optional Receivers and Gate Stops
19.1. Top Cup Receiver | Choose one 199-60 or 199-50 or None
-
NONE
-
Gate Receiver w/Shock Absorber, 2-3/8" ID
Wider receiver for variable and windy conditions.Price46.70Quantity1Subtotal46.70 -
199-60
-
Gate Receiver w/Shock Absorber, 2" ID
Fits more closely around the gate panel.Price35.90Quantity1Subtotal35.90 -
199-50
19.1.1. Mounting Bracket
-
Adjustable Mounting Bracket, Small, Galvanized
The adjustable mounting "L" bracket is designed to allow you to mount the Top Cup and/or Gate Receiver to the side of the post so the gate can clear the opening and meet UL325/ASTM F2200 safety codes for no protrusions that can cause puncture wounds to pedestrians.Price143.40Quantity1Subtotal143.40 -
CG-15M
19.2. Gate Receiver
-
Gate Receiver, Fits 2"-3", Galvanized, w/Nylon Rollers
Works with the Top Cup to secure the gate in the closed position. The Gate Receiver is recommended, but not required.Price114.90Quantity1Subtotal114.90 -
CG-30M
19.2.1. Mounting Bracket
-
Adjustable Mounting Bracket, Small, Galvanized
The adjustable mounting "L" bracket is designed to allow you to mount the Top Cup and/or Gate Receiver to the side of the post so the gate can clear the opening and meet UL325/ASTM F2200 safety codes for no protrusions that can cause puncture wounds to pedestrians.Price143.40Quantity1Subtotal143.40 -
CG-15M
19.3. Runaway Gate Stop | Choose one 202 or 202F-A or None
-
NONE
-
Gate Stop, Galvanized, 4-3/4" high, Bolt on
Provides a physical gate stop on the open end of the gate to prevent runaway. Helps to meet UL325 & ASTM F2200 safety codes by providing a fixed gate stop. The Gate Receiver is recommended, but not required.Price20.10Quantity1Subtotal20.10 -
202
-
Gate Stop, Damped, Galvanized, 3x4 base, Bolt on
Optional damped, shock absorbing gate stop. This stop is recommended for gates that have pickets or other parts that are screwed together, rather than welded. It reduces the shock impact to the gate, reducing gate maintenance.Price112.00Quantity1Subtotal112.00 -
202F-A
20. Gate Frame Material, 2 x 4 rectangle; Steel or Aluminum, or opt out.
20.1. Choose one Steel tube for Full Rectangular Frame or Bottom Rail Only or None
-
NONE
-
2" x 4" Rectangular Tube, Steel, 24FT
Steel tube for full RECTANGULAR gate framePrice268.00Quantity1Subtotal268.00 -
RT2x4ST
-
2" x 4" Rectangular Tube, Steel, 24FT
Steel tube for BOTTOM RAIL onlyPrice268.00Quantity1Subtotal268.00 -
RT2x4ST
20.2. Choose one Aluminum tube for Full Rectangular Frame or Bottom Rail Only or None
-
NONE
-
2" x 4" Rectangular Tube, Aluminum, 24FT
Aluminum TUBE for full RECTANGULAR gate framePrice277.60Quantity1Subtotal277.60 -
RT2x4AL
-
2" x 4" Rectangular Tube, Aluminum, 24FT
Aluminum tube for BOTTOM rail onlyPrice277.60Quantity1Subtotal277.60 -
RT2x4AL
-
-
Summary
Step 3 of 3-
Your Ranger hardware configuration is complete!
Summary View
Specify Gate Automation.
Do you plan to automate the gate or open it manually?Do you plan to automate the gate or open it manually?Choose an optionFor options for the gate operator and access controls to complete this job, follow the link below. https://www.archirondesign.com/gate-automation-swing-and-slide-gate-operators/gate-operators.html
Your gate is estimated to weigh between 0 lbs. and 0 lbs. You should select an operator with the weight capacity of at least 0 lbs. and an opening size greater than 0.
-
